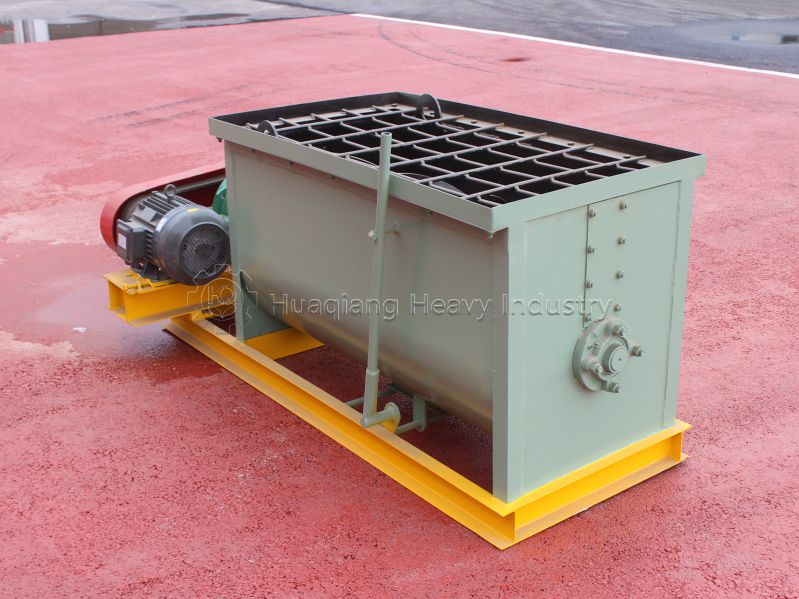

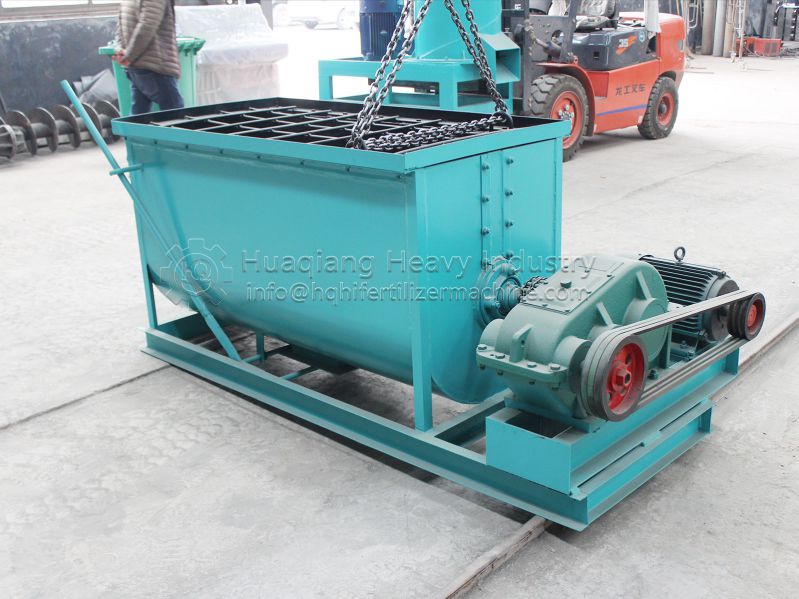

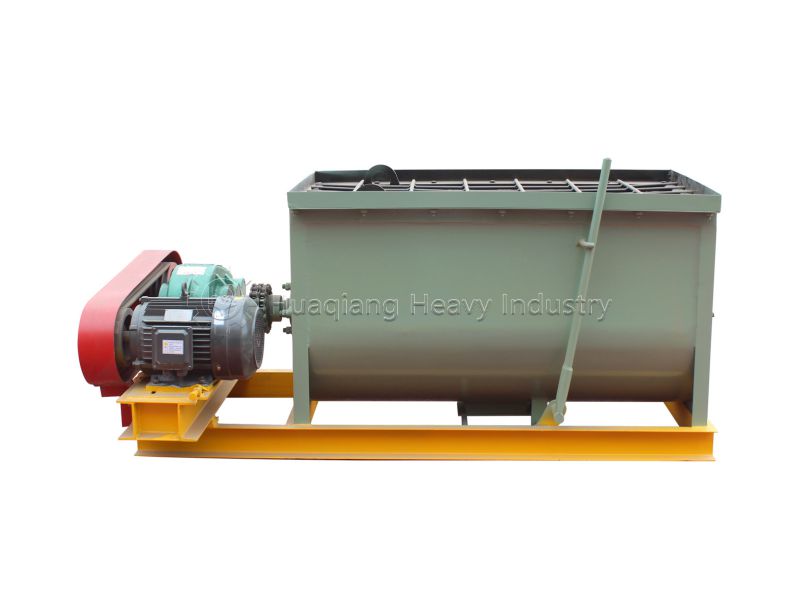

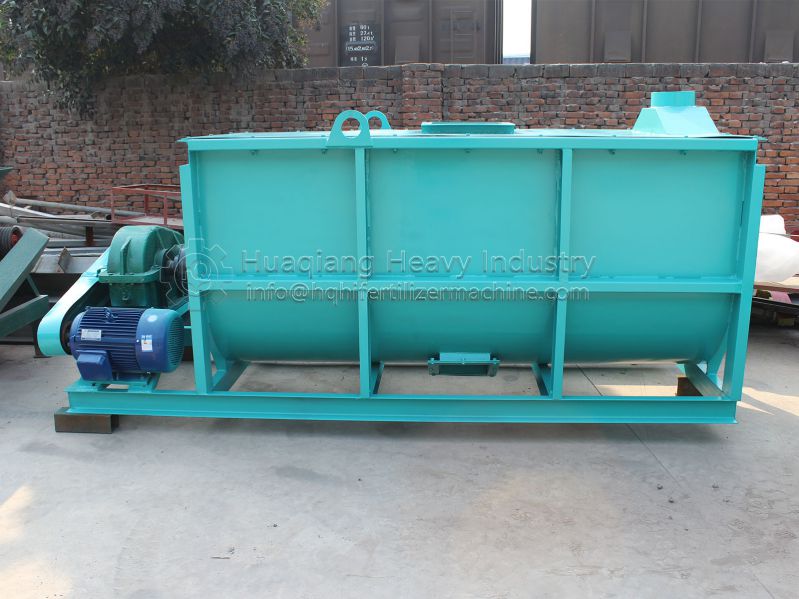

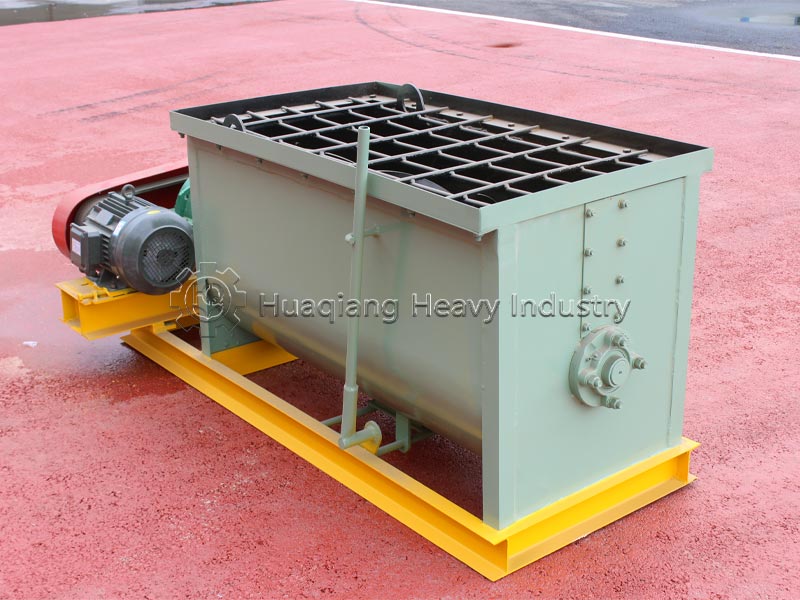

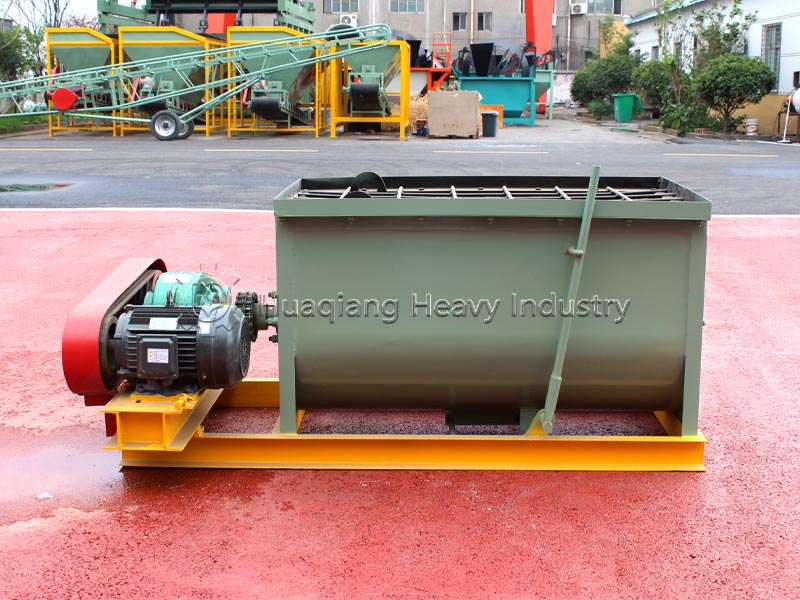

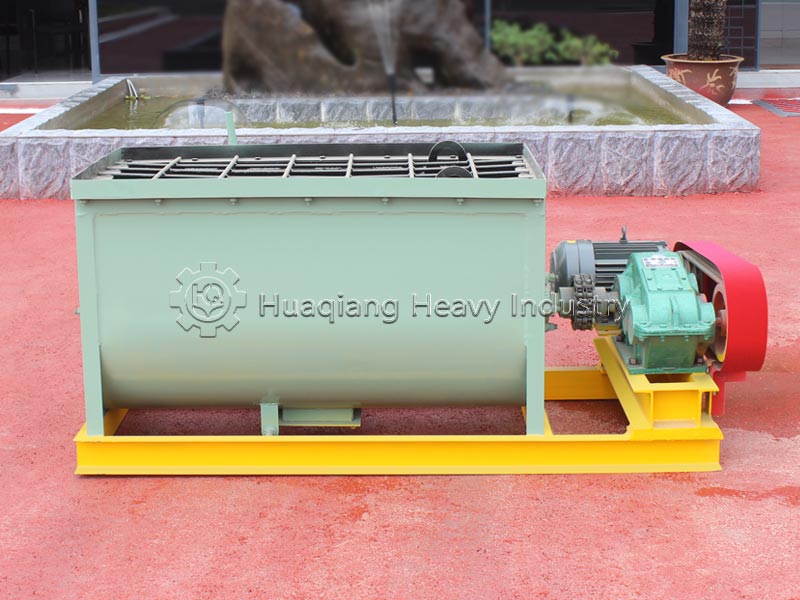

Horizontal Mixer

A horizontal mixer (horizontal ribbon mixer)is a piece of mechanical equipment that utilizes mechanical force and gravity to achieve uniform material mixing within a short period through the movement of an agitator. Its core structure consists of a U-shaped vessel and internal double-layer counter-rotating helical blades (ribbons); the synergistic movement of the inner and outer ribbons enables highly efficient mixing of the materials.

What is the working principle of a horizontal mixer?

The core operating mechanism of a horizontal ribbon mixer consists of inner and outer helical blades (ribbons) mounted on a horizontal shaft, with the inner and outer ribbons wound in opposite directions.

Operation proceeds simultaneously in two directions: the outer ribbon conveys material near the vessel walls from both ends toward the center, while the inner ribbon conveys material near the shaft from the center toward both ends. Through this push-and-pull action, the material undergoes a dual motion of convective circulation and shear-based blending within the U-shaped vessel. In short, rather than simply tumbling back and forth in one direction, the material circulates both radially and axially, resulting in rapid mixing and high uniformity.

What are the key advantages of the horizontal ribbon mixer?

Exceptional material compatibility: It effectively mixes dry powders, moist livestock manure, viscous pastes, wet raw materials with added microbial agents, and granular blends; it is the preferred choice for processing high-moisture cattle and chicken manure.

High loading capacity: The vessel allows for a loading rate of 60%-85%, accommodating large batch sizes and supporting continuous production for medium-to-large organic fertilizer plants.

Easy cleaning and maintenance: The top-opening design allows workers to enter the vessel directly for washing, preventing cross-contamination when switching fertilizer formulas—making it ideal for the alternating production of various bio-organic fertilizer recipes.

Low failure rate: It features a simple internal structure with few wear-prone parts; the reinforced, heavy-duty main shaft resists bending or deformation, even during prolonged mixing of heavy, moist manure.

Minimal residual material: The ribbon continues to rotate and push material during discharge, while the large bottom-opening gate ensures rapid emptying, thereby minimizing the waste of valuable fertilizers containing beneficial microbes.

Flexible facility requirements: Its horizontal layout results in a low profile, allowing for installation in simple, low-ceiling workshops without the need for high-rise factory buildings.

Why choose the Huaqiang Heavy Industry horizontal crusher?

The primary reason to choose the Huaqiang horizontal crusher is that it effectively addresses the specific challenges of fertilizer production, features robust construction, and ensures hassle-free maintenance. Utilizing a dual-rotor crushing structure, the machine is specifically designed to handle high-moisture, sticky materials——such as livestock manure, crop stalks, and spent mushroom substrate—without the risk of material adhering to the walls or clogging the shaft. It produces uniform, fine particles ready for immediate use in subsequent fermentation and granulation stages, thereby enhancing the quality of the finished fertilizer.

Constructed from thickened, wear-resistant steel, the machine features durable wear parts (such as hammers and chains), operates with minimal vibration, and offers exceptional stability, allowing for continuous, long-term operation. A wide range of models is available to suit the output requirements of small- and medium-sized organic fertilizer plants; the machine’s versatility allows it to process various raw materials, eliminating the need for multiple crushing units and reducing investment costs.

With over two decades of experience in the fertilizer equipment industry, the manufacturer offers customizable specifications to meet specific production line needs. The machine features a user-friendly maintenance access design, making daily cleaning and servicing convenient. Furthermore, Huaqiang Heavy Industry provides comprehensive pre-sales selection guidance, on-site commissioning, and long-term after-sales support, effectively preventing production delays caused by equipment failure—making it a reliable crushing solution for organic fertilizer production lines.
