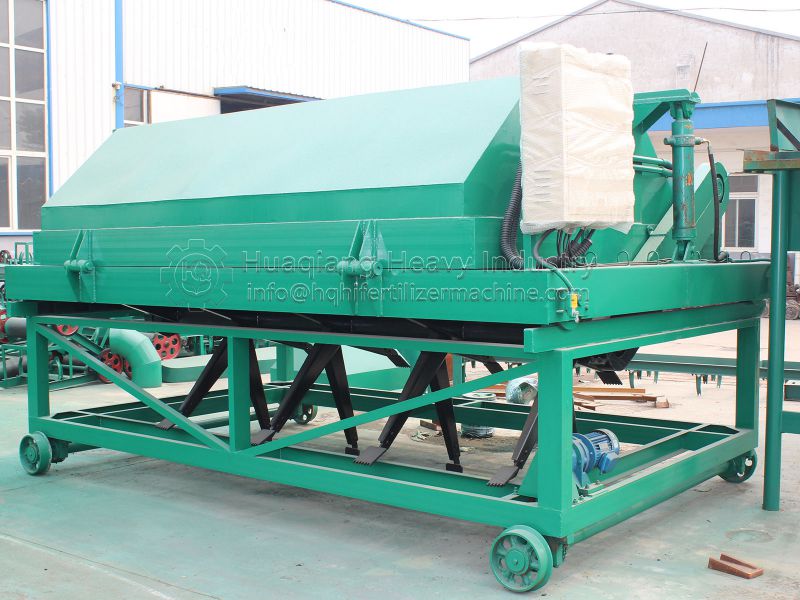

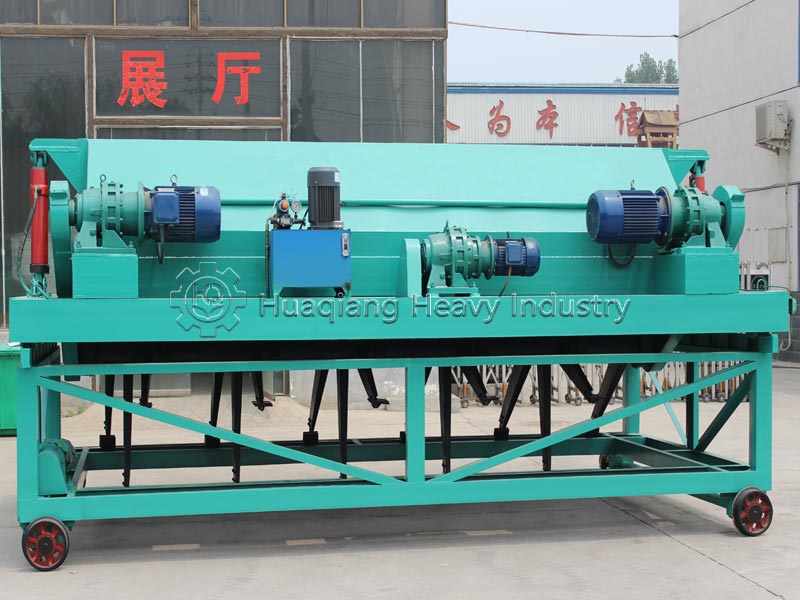

The hydraulic compost turning machine is a piece of large-scale turning equipment specifically designed for aerobic fermentation processes utilizing in-ground troughs. The equipment primarily consists of a drive system, a lifting mechanism, a travel mechanism, a turning assembly, and a transfer carriage. Unlike traditional turning equipment, it employs a hydraulic drive system instead of a standard electric motor drive and features an independent hydraulic lifting system; the height of the turning blade shaft can be freely adjusted, allowing it to easily accommodate material layers of varying thicknesses.

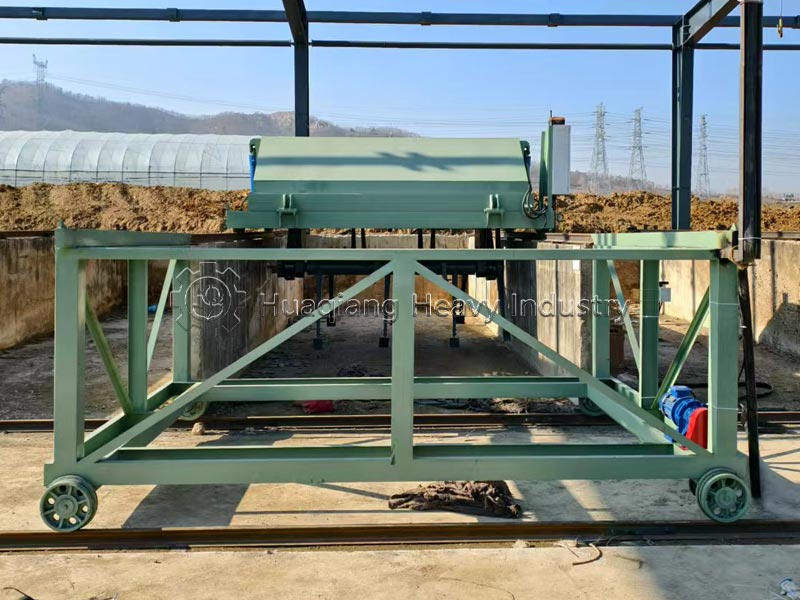

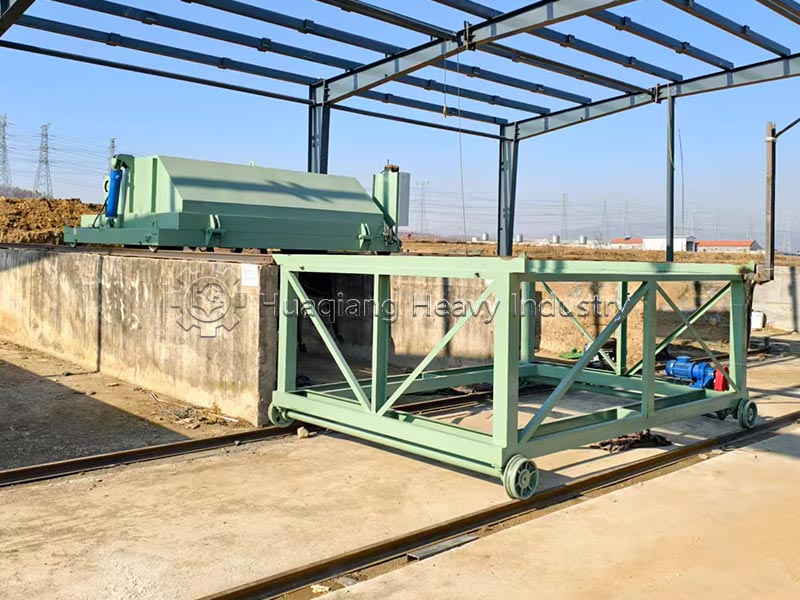

The Huaqiang hydraulic compost turning machine employs an operational mode combining "hydraulically regulated turning depth"with "stable rail-based movement"The equipment travels at a constant speed along fixed rails installed on both sides of the fermentation channel. A high-power hydraulic motor drives the turning rotor to rotate at high speed; alloy mixing tines, arranged in a spiral pattern on the rotor, cut deep into the material, breaking up compacted matter and tossing it into the air to ensure full exposure to oxygen.
The hydraulic system adjusts the vertical position of the turning drum in real-time based on the height of the compost pile, ensuring a consistent turning depth. This deep-turning method moves oxygen-deprived material from the bottom to the surface and shifts surface material into the interior, achieving thorough turning across the entire depth and width of the channel with no dead zones. This process replaces the inefficient operations associated with traditional manual turning or small-scale mechanical turners, achieving a material mixing uniformity of over 92%.
The Huaqiang hydraulic compost turning machine is capable of processing a wide range of organic wastes, including livestock and poultry manure (chicken, cattle, pig, etc.), sludge, sugar mill filter mud, dregs and press cakes, straw, and sawdust. It is widely used in:
Organic fertilizer plants: Aerobic fermentation of various organic raw materials to enable continuous, large-scale production.
Large-scale livestock farms: On-site fermentation of manure and bedding materials into organic fertilizer.
Environmental protection: Harmless treatment of municipal sludge, kitchen waste, industrial residues, and more.
In organic fertilizer projects with an annual capacity of over 10,000 tons, a single compost turner serving multiple parallel troughs allows for continuous material intake and discharge, significantly enhancing site utilization and production continuity.
Organic fertilizer production generally follows two main paths: powdered fertilizer and granular fertilizer. The hydraulic compost turner serves as the core piece of fermentation equipment common to both processes:
Raw material proportioning——Feeding —— Fermentation via hydraulic compost turning machine ——Crushing (half-wet material crusher) ——Drum screening——Automatic packaging/filling; this process offers a high level of automation and a low investment threshold.
Fermentation discharge ——Crushing ——Horizontal mixing ——Disc granulation or extrusion granulation ——Drying and cooling—— Screening ——Coating ——Finished product packaging; Huaqiang Heavy Industry provides a complete, one-stop equipment package for the entire production line.
Choosing the Zhengzhou Huaqiang Heavy Industry hydraulic compost turning machine offers key advantages: reliable factory-direct quality, outstanding operational performance, and worry-free, comprehensive service. As a specialized manufacturer of complete organic fertilizer equipment, Huaqiang Heavy Industry independently develops and produces a full range of machinery——including fermentation, granulation, drying, and screening systems. Backed by strong technical expertise and numerous successful projects worldwide, the company welcomes on-site visits to observe the equipment in actual operation.
The hydraulic compost turner features a fully hydraulic drive system that delivers robust power and high torque, allowing it to easily handle clumped materials such as chicken manure, cattle manure, and crop stalks without stalling or jamming. Its hydraulic lifting and smooth start-stop functions ensure compatibility with various fermentation channel specifications, making it suitable for diverse livestock farms and organic fertilizer production facilities. Designed to optimize aerobic fermentation, the machine ensures uniform turning and aeration, effectively shortening the composting maturation cycle and boosting production efficiency. The manufacturer offers on-demand customization and optional intelligent control systems to seamlessly integrate with specific production line requirements. Additionally, the company provides on-site surveys, installation and commissioning, technical guidance, and after-sales support. With factory-direct sales eliminating middlemen, the equipment offers excellent value and low long-term maintenance costs, making it an ideal choice for enhancing organic fertilizer fermentation quality and efficiency.
| Model | Main Motor | Walking Motor | Moving Motor | Hydraulic Pump Motor |
| FPY4 | 22kw | 1.5kw | 1.1kw | 4kw |
| FPY5 | 30kw | 1.5kw | 1.5kw | 4kw |
| FPY6 | 37kw | 2.2kw | 1.5kw | 4kw |
